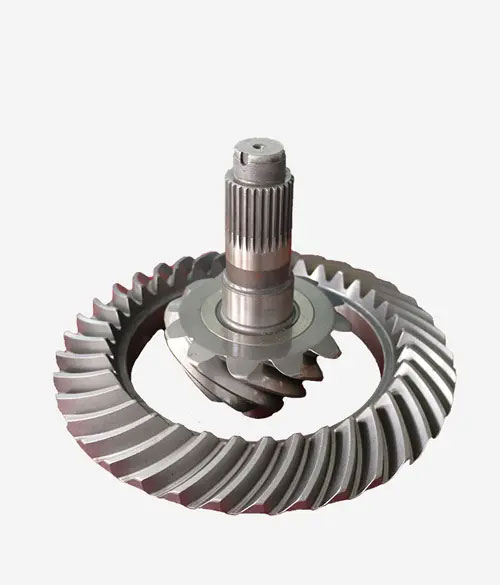

How to solve the noise and vibration problems of high-precision spiral bevel gears?

High-precision spiral bevel gears may have noise and vibration problems during operation, which will affect their normal operation and use. To solve this problem, we can take the following measures:

Properly designed gear geometry. Through reasonable geometric design, the tooth profile of the gear can be made smoother and more precise. For example, adopting a gear design with high machining accuracy and appropriate tooth root chamfering can reduce noise and vibration caused by too narrow tooth roots.

Use appropriate gear materials. Choosing materials with high hardness and strength can improve the fatigue resistance of gears, reduce gear deformation and looseness caused by torque transmission and loading, thereby reducing noise and vibration.

Optimize gear processing technology. Using precision processing equipment and processes for high-precision gear processing, such as CNC cutting, grinding, etc., can reduce the texture and errors on the gear surface, improve the accuracy and flatness of the gear, thereby reducing noise and vibration.

Adopt noise reduction design measures. Considering noise reduction measures in gear design, such as using involute gear design, can reduce the sudden change and impact of tooth load, thereby reducing noise and vibration.

Increase gear support stiffness. By increasing the stiffness and stability of the gear support, such as adopting a more stable support structure and arrangement, the vibration and resonance of the gear can be reduced, and the smooth operation and quietness of the gear transmission can be improved.

Strengthen the lubrication and maintenance of the transmission system. Lubricate and maintain gears regularly to ensure their normal operation and reduce noise and vibration caused by friction and wear of gears.

Optimize the fit clearance of gears. Reasonable selection of gear fitting clearance can reduce gear looseness and vibration caused by excessive fitting clearance, improve gear transmission accuracy and smoothness, and reduce noise and vibration.

Develop standards and specifications. By formulating standards and specifications to manage the manufacturing, design, processing and transportation of high-precision spiral bevel gears, we ensure product quality and reduce the occurrence of gear noise and vibration problems.

In summary, solving the noise and vibration problems of high-precision spiral bevel gears requires comprehensive consideration and optimization from multiple aspects such as design, materials, processes, noise reduction measures, support structures, lubrication maintenance, and matching clearances to improve the accuracy of the gears. , smooth and quiet, achieving efficient, stable and reliable operation of gear transmission.
