What are the problems that should be paid attention to in the design of high-precision spiral bevel gears?

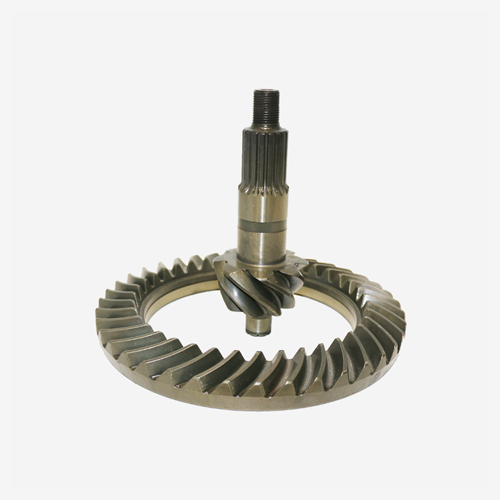

High-precision spiral bevel gear is an important part widely used in industrial machinery transmission. A series of issues need to be paid attention to in the design process to ensure that its performance and quality meet the high precision requirements. The following are issues that need attention in the design of high-precision spiral bevel gears.

Tooth profile design: The tooth profile design of the spiral bevel gear is an important factor to ensure the transmission accuracy and load carrying capacity. The geometric characteristics of the tooth profile, such as pressure angle, apex angle, lateral displacement, etc., as well as the modification of the tooth profile and the lubrication of the lubricant should be considered in the design. In addition, in order to improve the transmission efficiency and reduce the distance between the teeth, it is also necessary to consider the appropriate combination of the number of teeth.

Gear material selection: High-precision spiral bevel gears usually bear large radial loads and axial loads, so appropriate materials must be selected during design to ensure stable performance. Commonly used gear materials include alloy steel, carbon steel and stainless steel, etc., and their material properties and hardness requirements should be selected according to actual working conditions.

Gear processing technology: High-precision gears require precision processing technology to ensure tooth profile accuracy and surface quality. The processing technology includes milling of gears, grinding of tooth surfaces and heat treatment of gears. During the machining process, the machining parameters and machining accuracy should be strictly controlled to ensure the accuracy and reliability of the gear.

Gear fit: Spiral bevel gear transmission transmits power through the meshing of gears, so the fit accuracy of gears has an important impact on the stability and life of the transmission. In the design, it is necessary to determine the appropriate fit clearance and support stiffness according to the precision grade and fit tolerance of the gear, so as to improve the transmission efficiency and working stability of the gear.

Lubrication and vibration damping: In high-precision spiral bevel gear transmission, lubrication and vibration damping are important factors to ensure the smooth operation of gear transmission. Correct selection of suitable lubricants and ensuring the normal lubrication state of the gears can help reduce tooth surface wear and gear noise. In addition, the application of vibration reduction technology can also reduce the vibration and noise of gear transmission.

Stiffness design of gear transmission system: The stiffness of high-precision spiral bevel gear transmission system has an important influence on transmission performance and stability. In the design, it is necessary to consider the rigidity matching of the transmission system to ensure the high precision and high working life of the gear transmission.

Assembly accuracy: The assembly accuracy of high-precision spiral bevel gears has a great influence on the performance and life of the transmission. During the assembly process, parameters such as the position of the gear, the axial clearance and the inclination of the gear should be precisely controlled to ensure the assembly accuracy and the normal operation of the gear.

Reliability analysis of gear transmission: In the design of high-precision spiral bevel gear transmission, reliability analysis should be carried out to evaluate the life and reliability of the transmission system. By analyzing parameters such as load, contact stress, fatigue life and reliability indicators, the reliability of the transmission system can be judged, and improvements and optimizations can be made for design problems.
